WINTEX 2000

Product information

The WINTEX 2000 is an automatic and powerful soil sampler for soil samples up to 60 cm. 225 sticks and 15 samples per hour ensure fast and extremely efficient soil sampling.

Consequently - compared to manually collecting soil samples - notably larger areas can be sampled considerably faster. In this way time and money will be saved. There is no need to hire extra help, and the physical strain is reduced to a minimum.

The WINTEX 2000 always takes samples in exact same depth which can be adjusted from 0-60 cm according to the user’s needs. The soil sampler works with a hydraulic hammer and goes easily into all kinds of soil, even into frozen ground. The pressure which the soil sampler uses to go into the ground can be adjusted according to the type of soil.

The WINTEX 2000 has an additional program for taking soil samples from two different layers at the same time. It is therefore possible to take a soil sample from for example 10-30 cm and 30-60 cm in just one operational step. The samples are delivered with close accuracy into two soil boxes. The point where the sample will be split can be adjusted according to the user’s requirement.

Soil sampling with the WINTEX 2000 is conducted by a soil sampler probe and not by an auger which ensures a fully homogeneous sample. If soil sampling happens by the means of an auger, the accuracy of the soil sample can be impaired as an auger always takes more material from the top layers than from the lower layers of the soil.

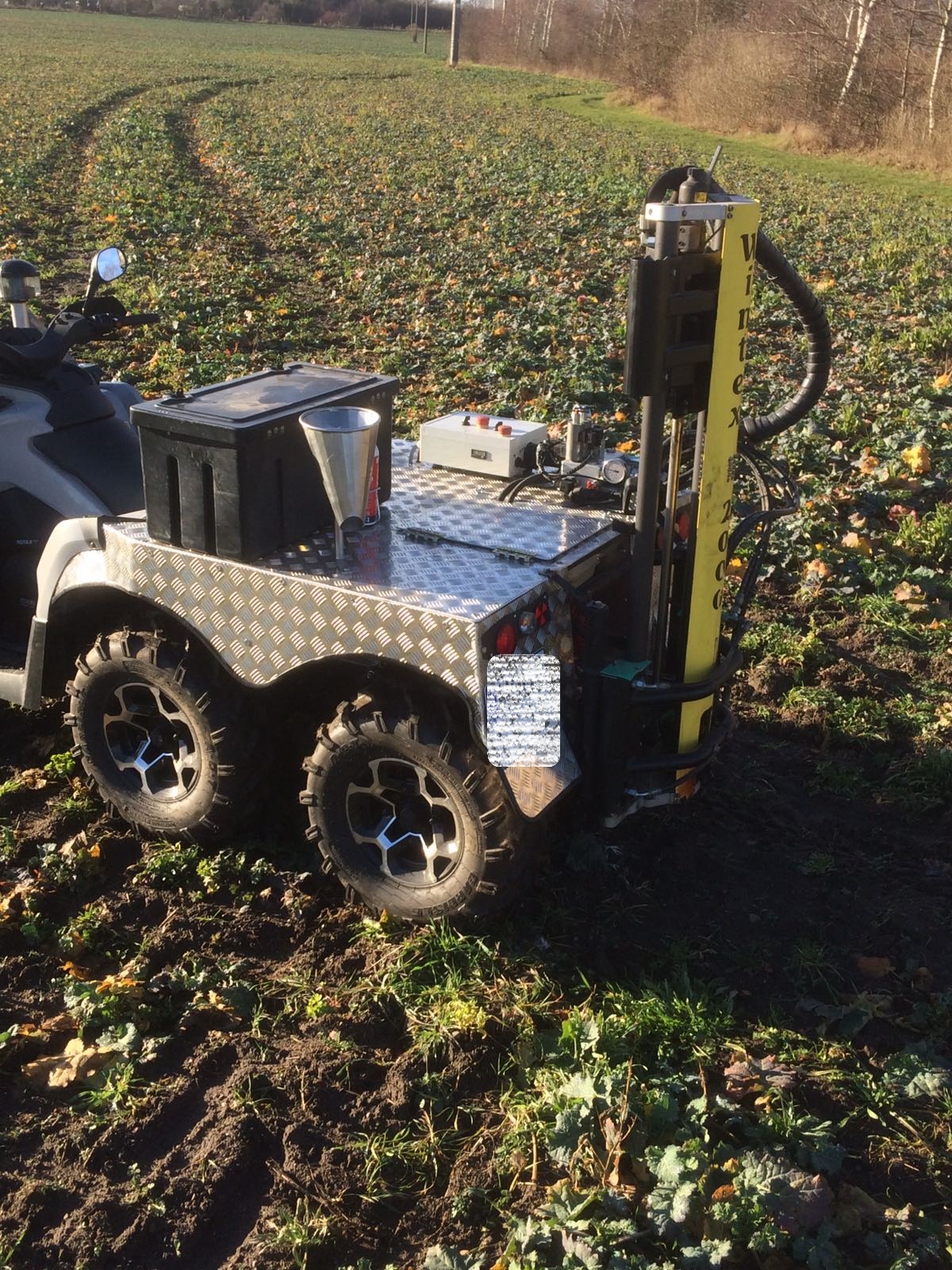

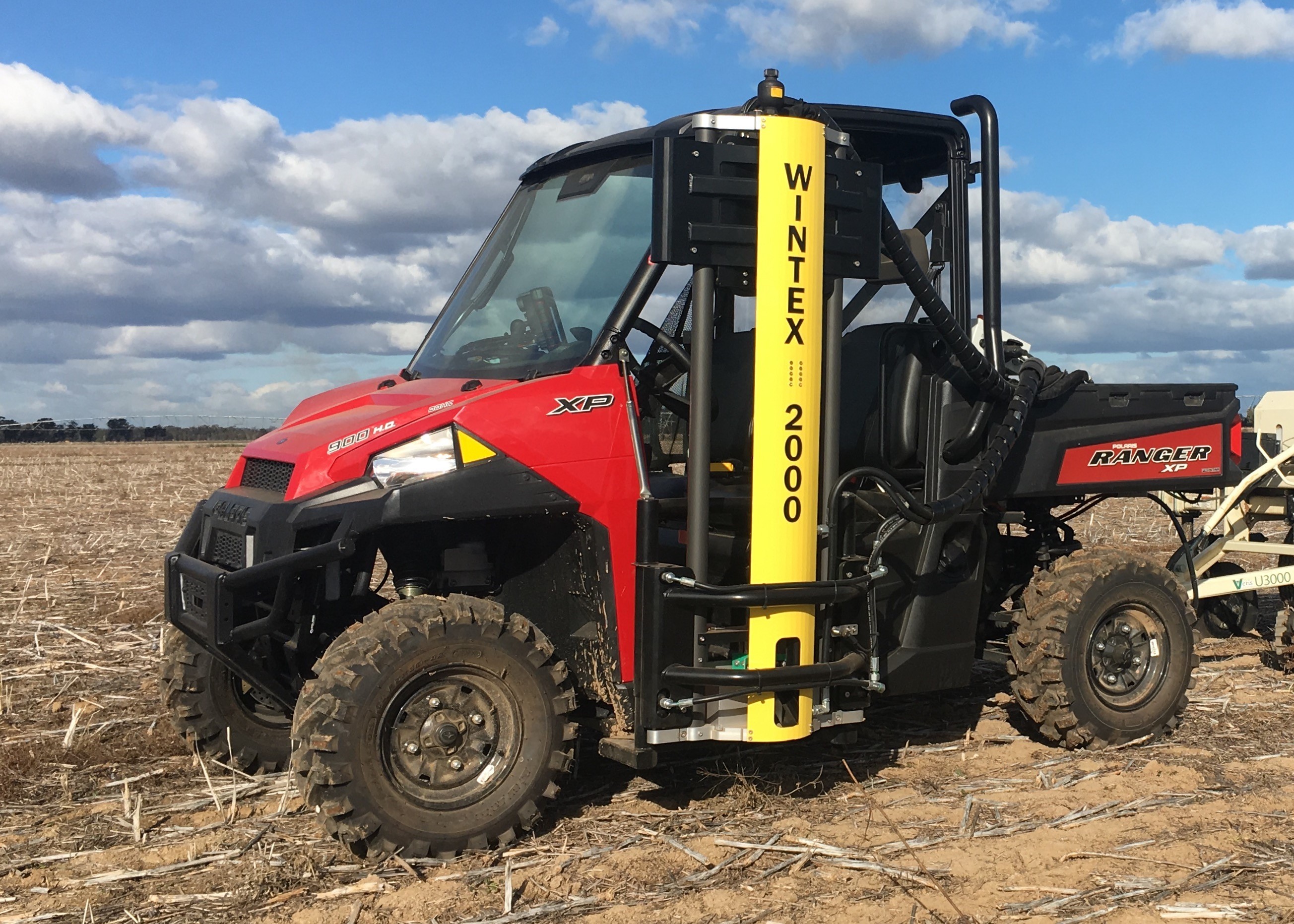

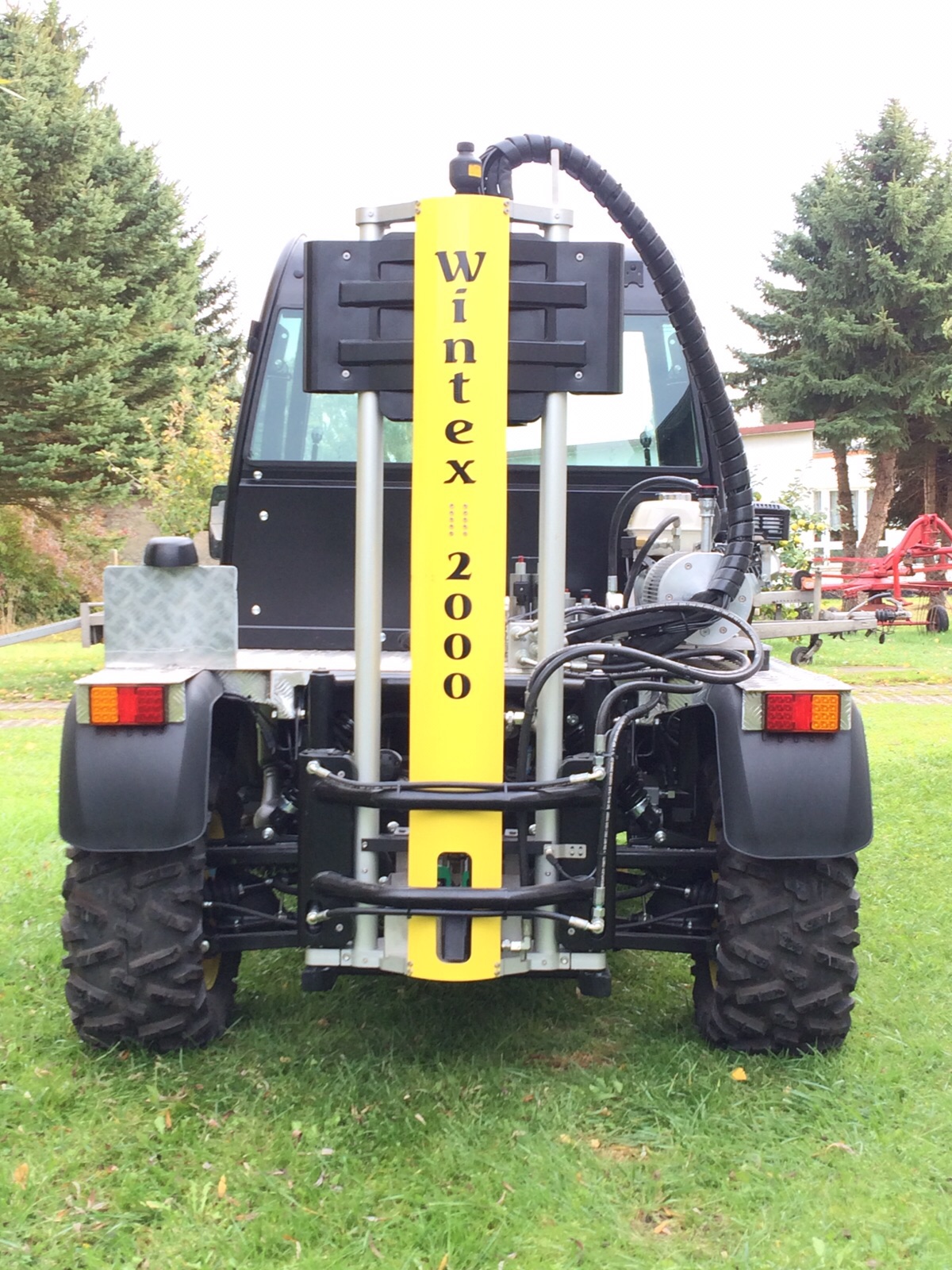

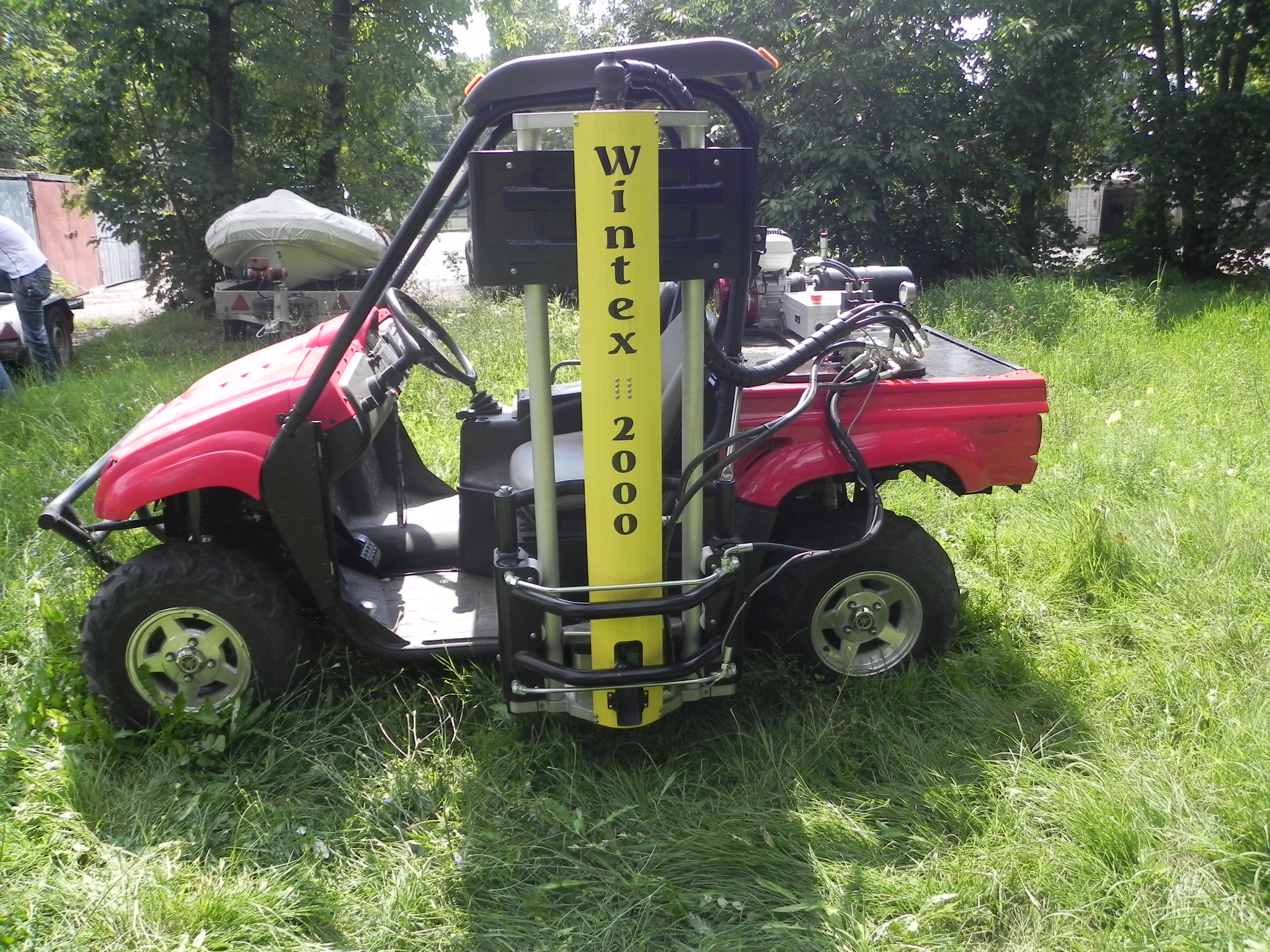

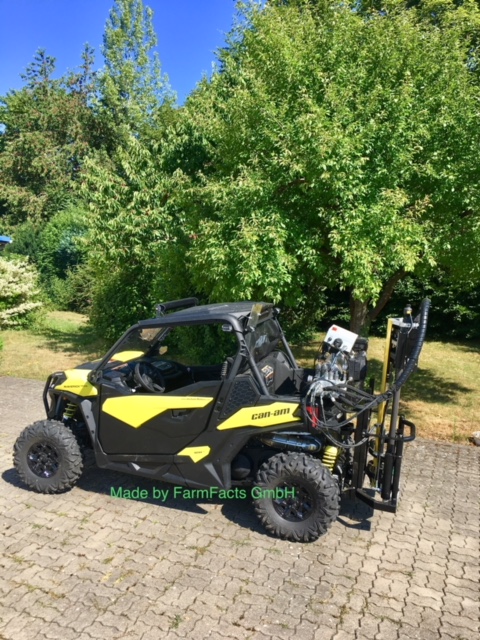

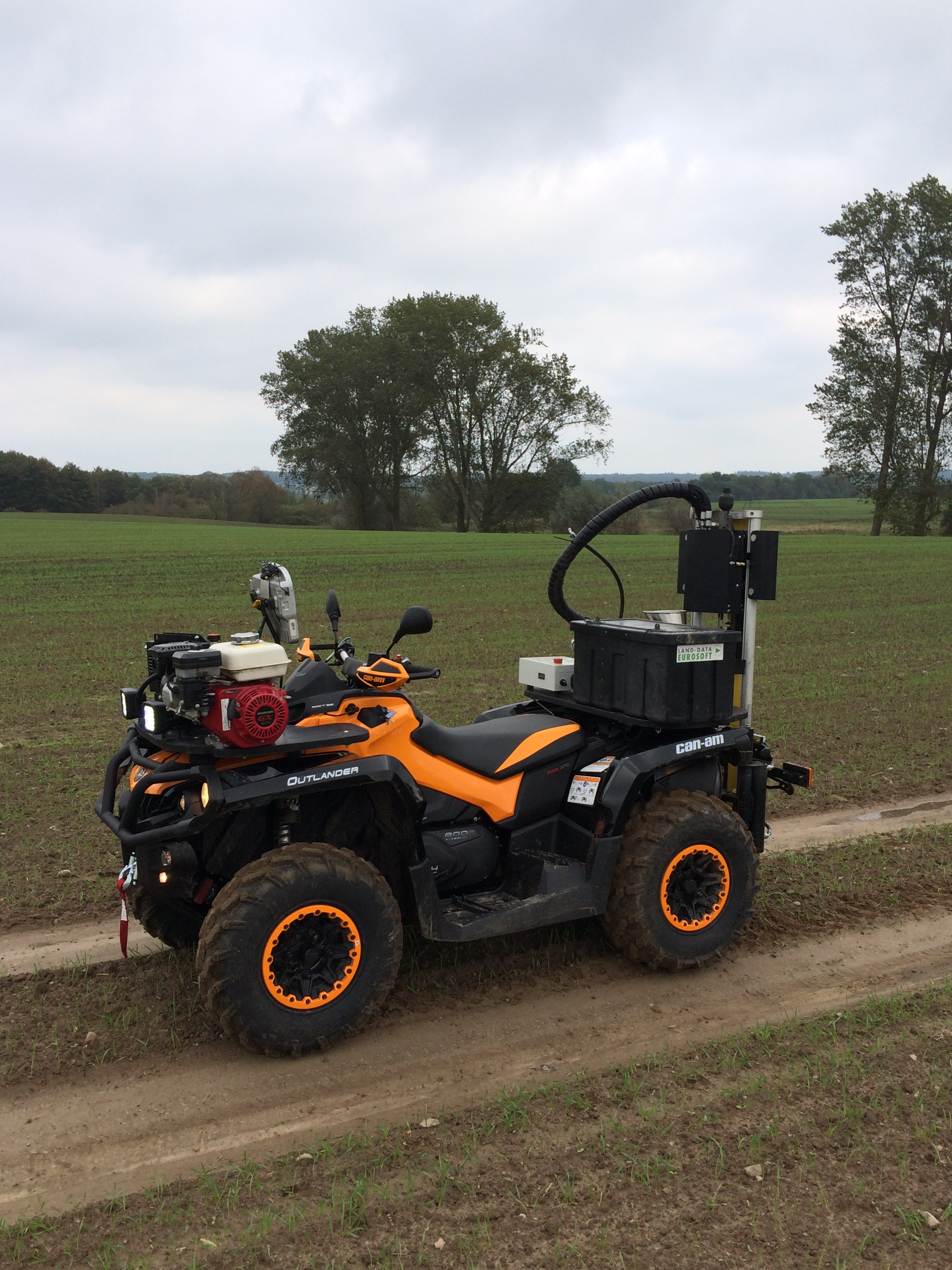

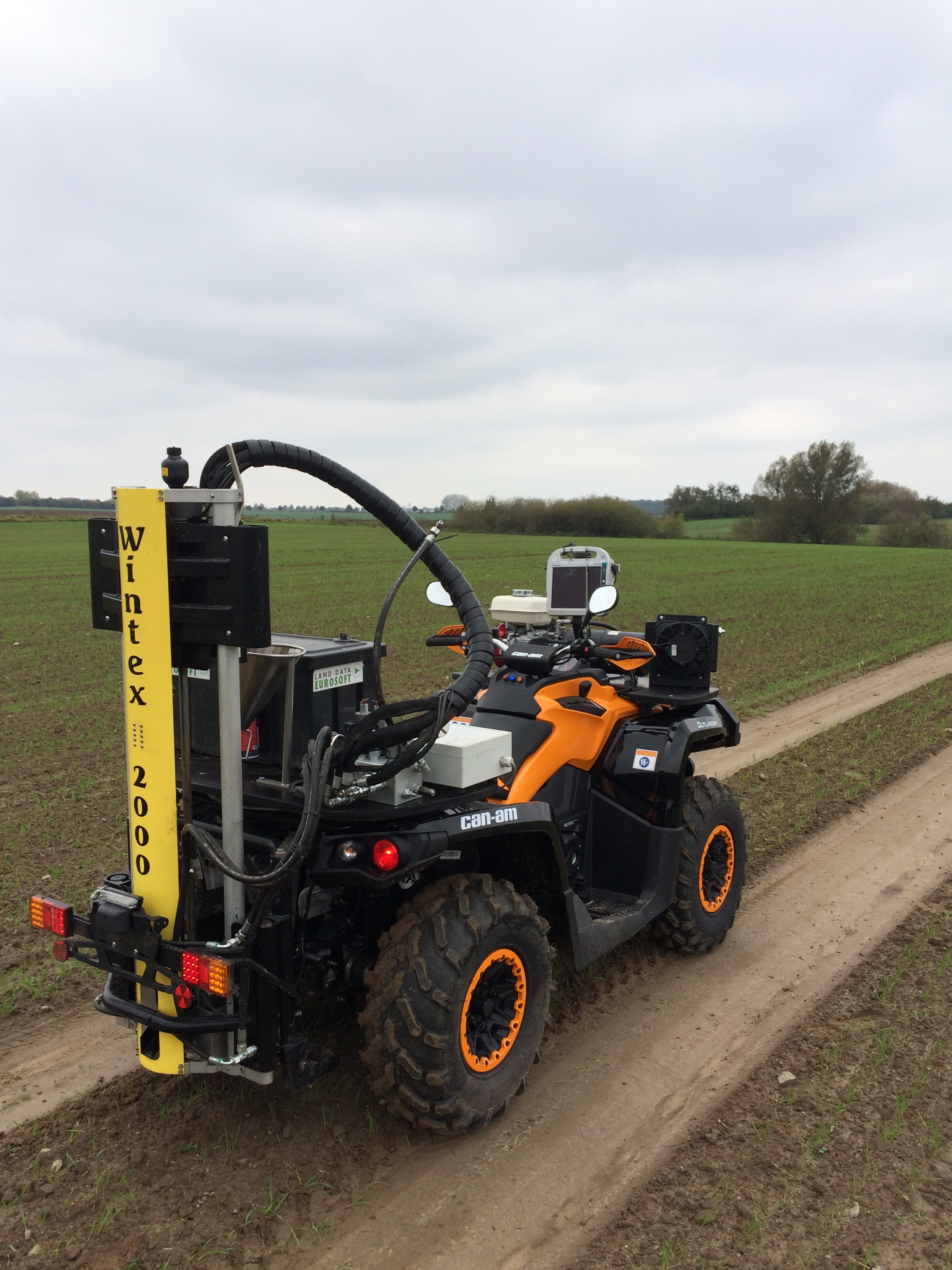

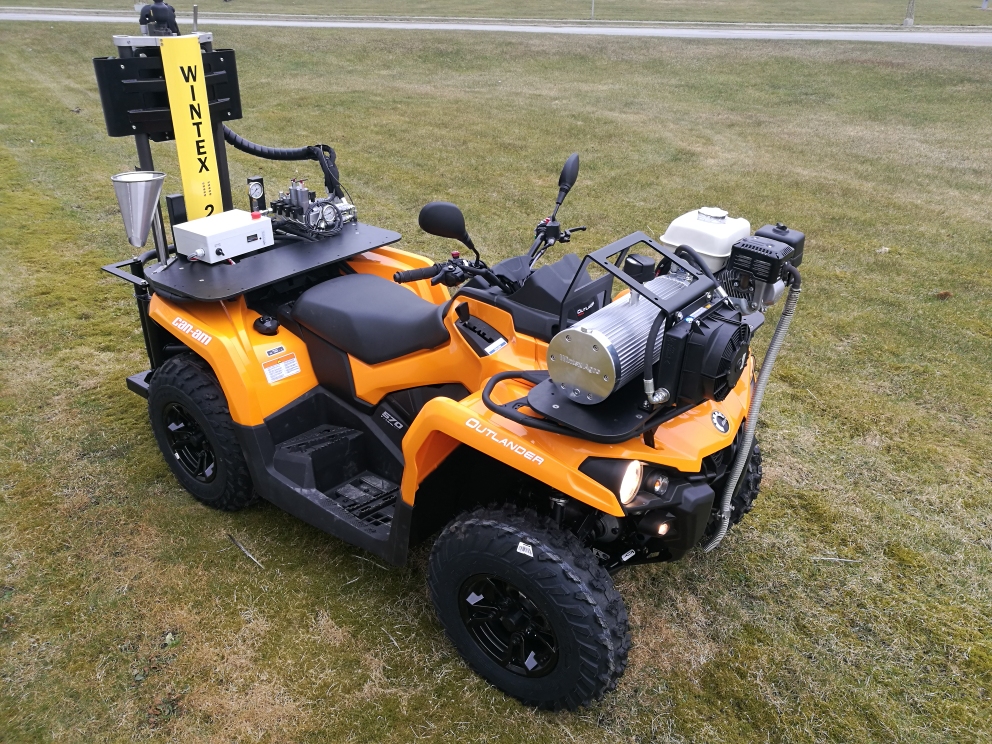

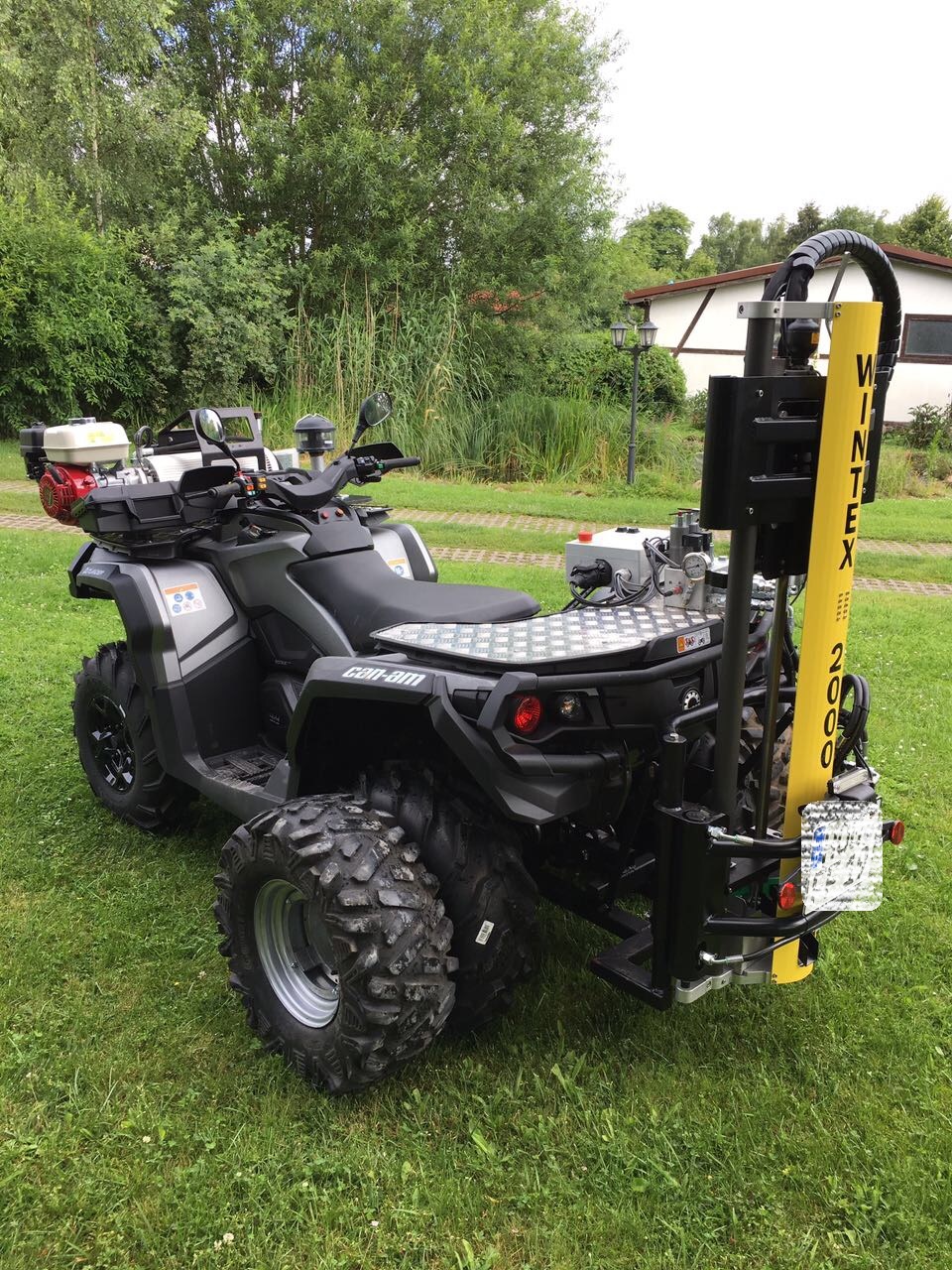

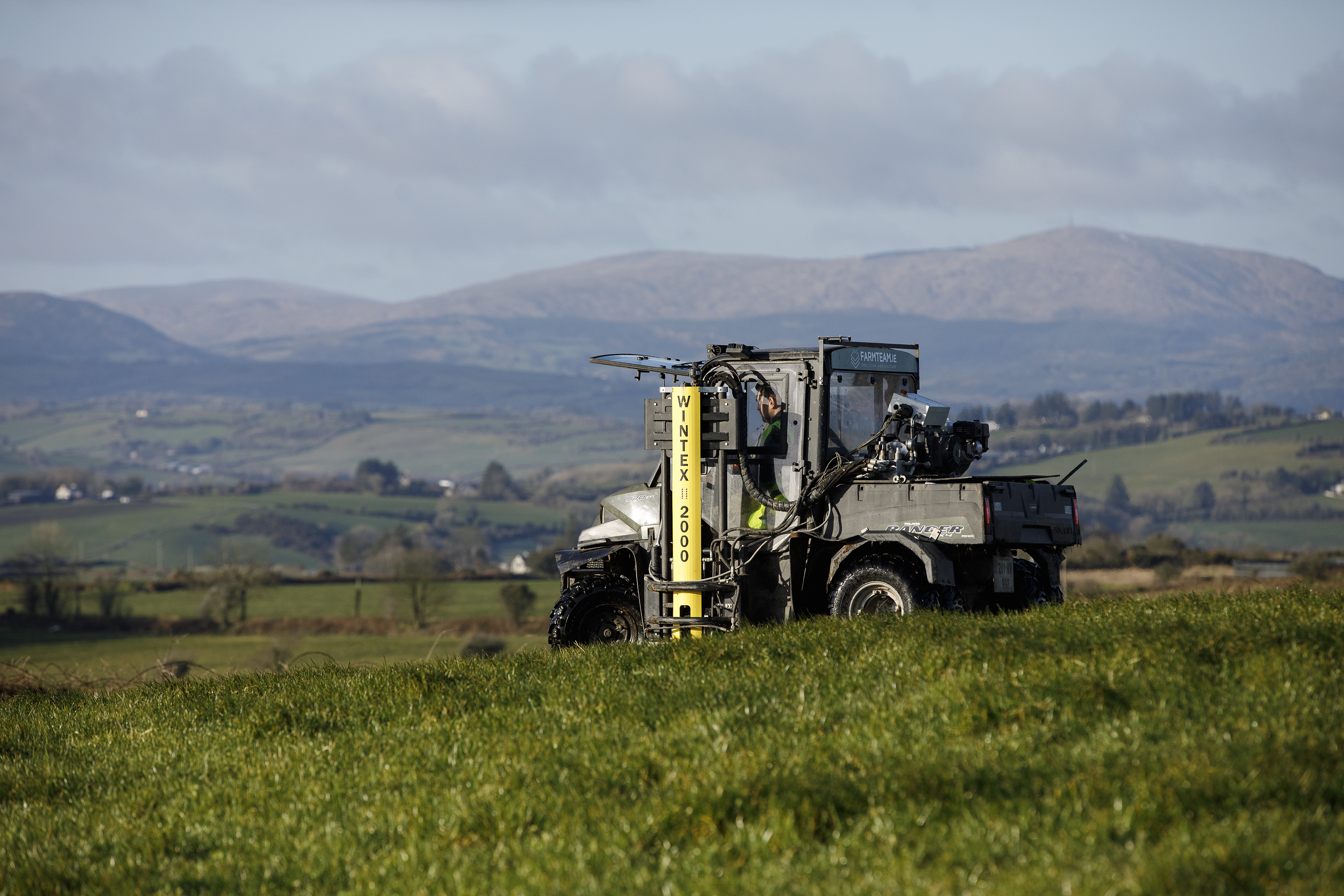

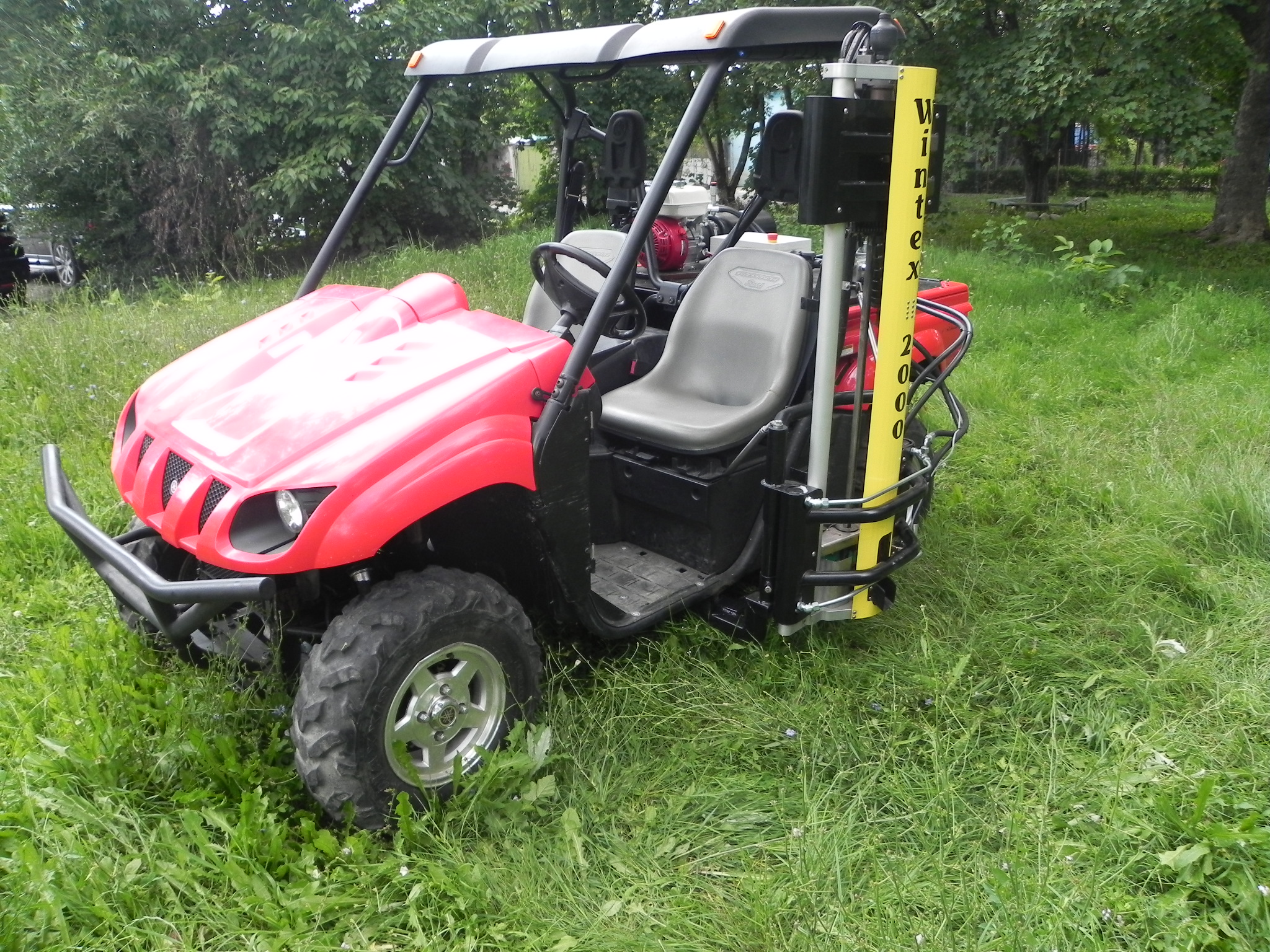

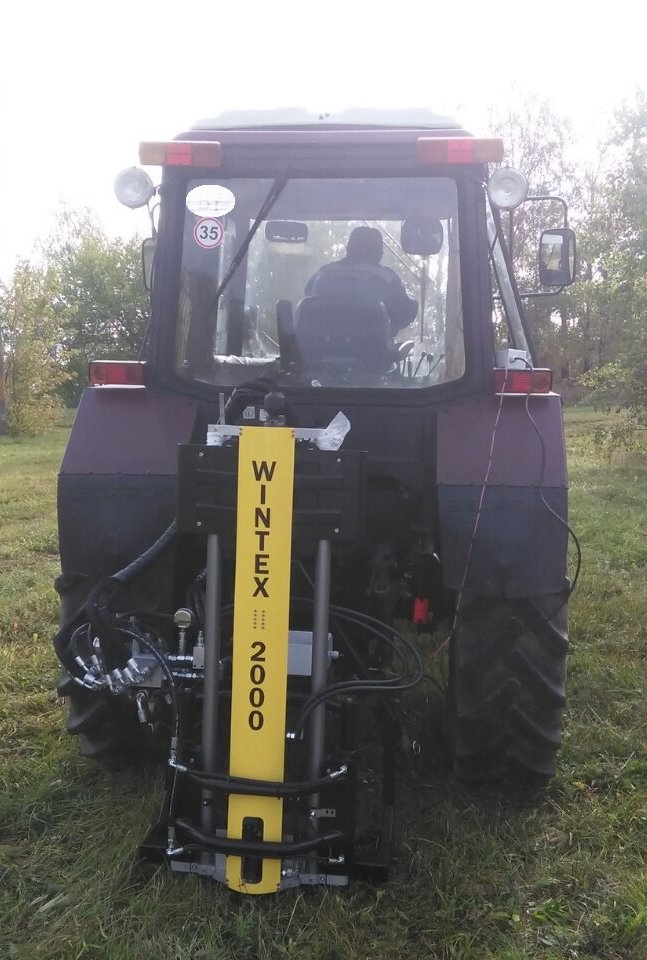

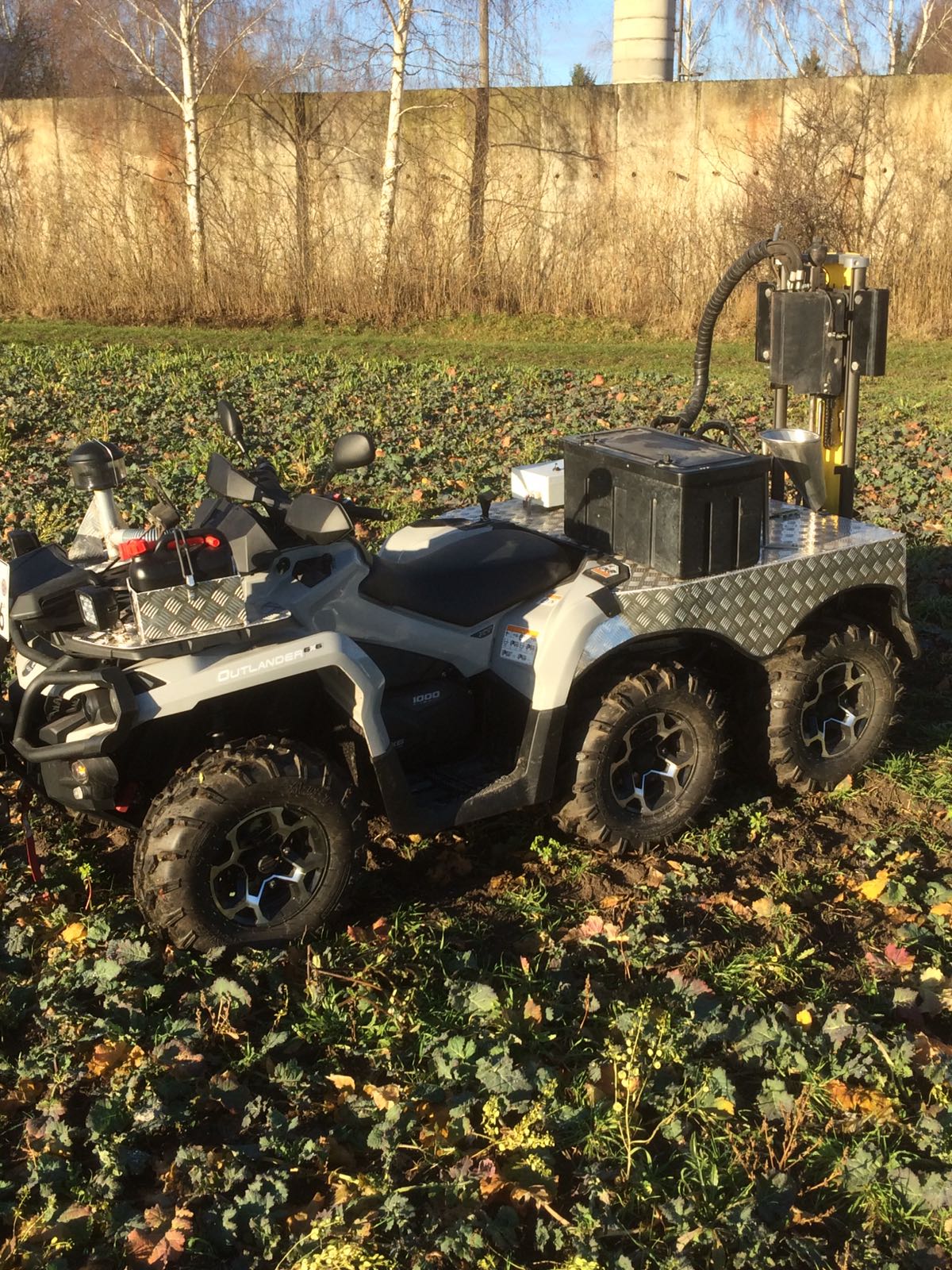

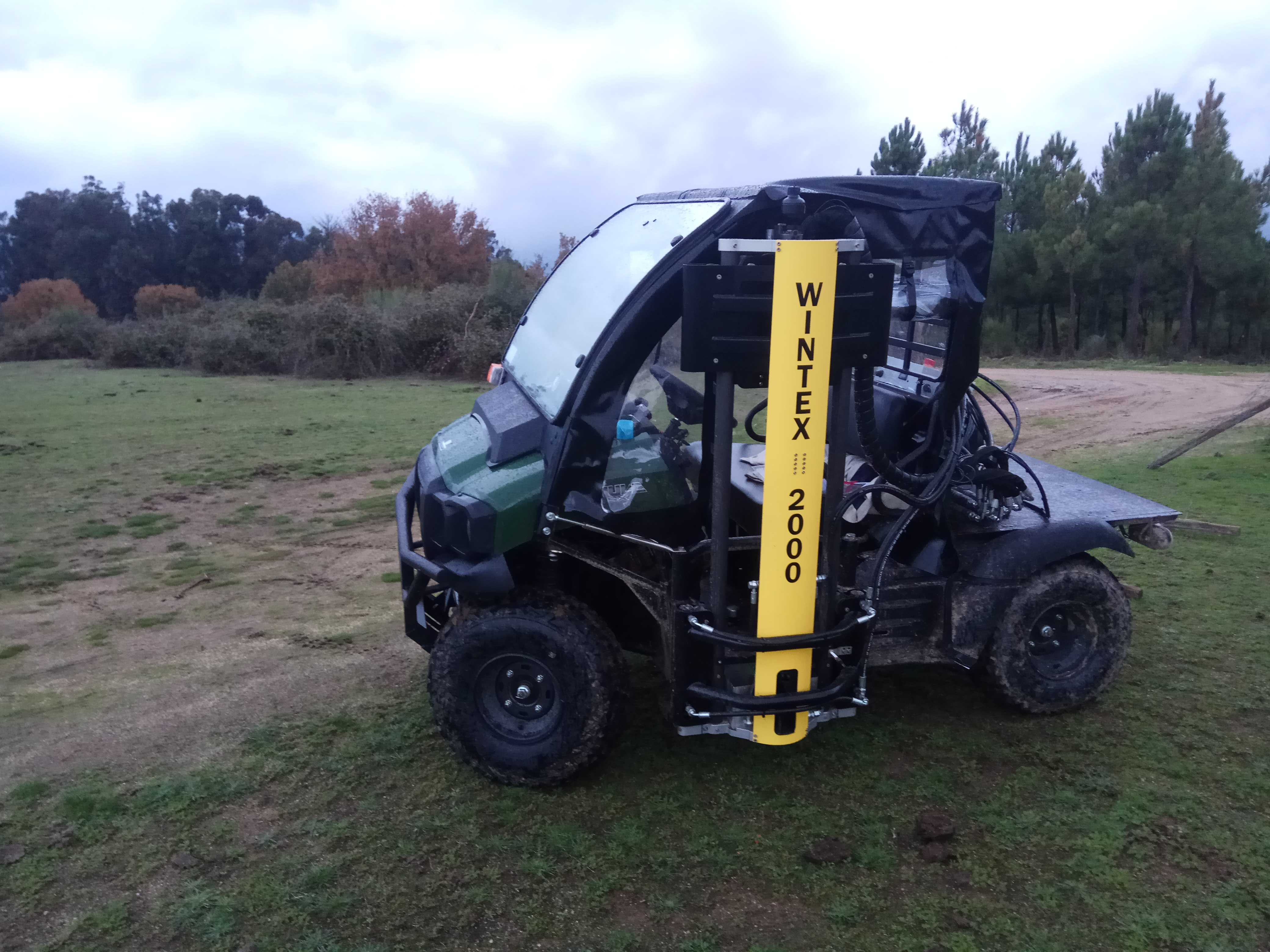

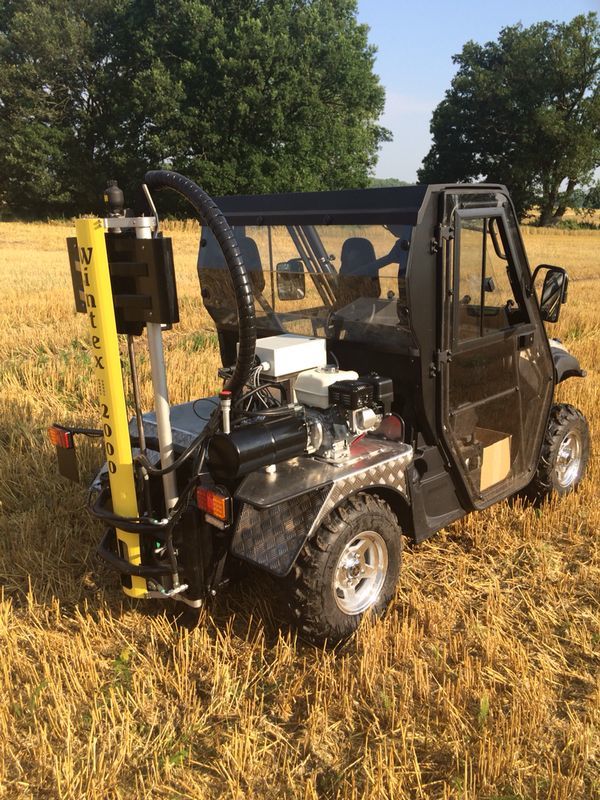

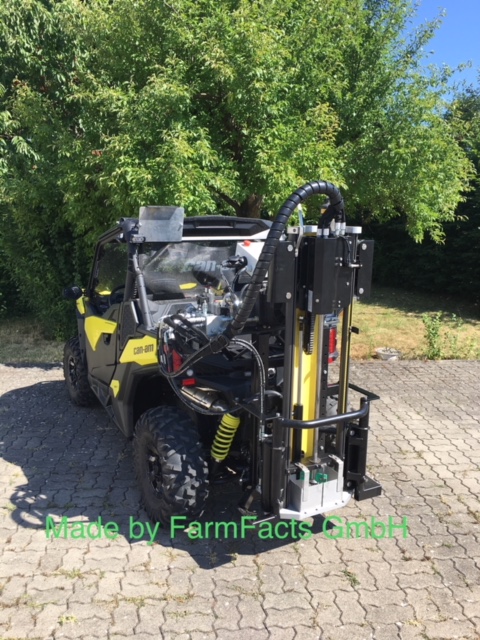

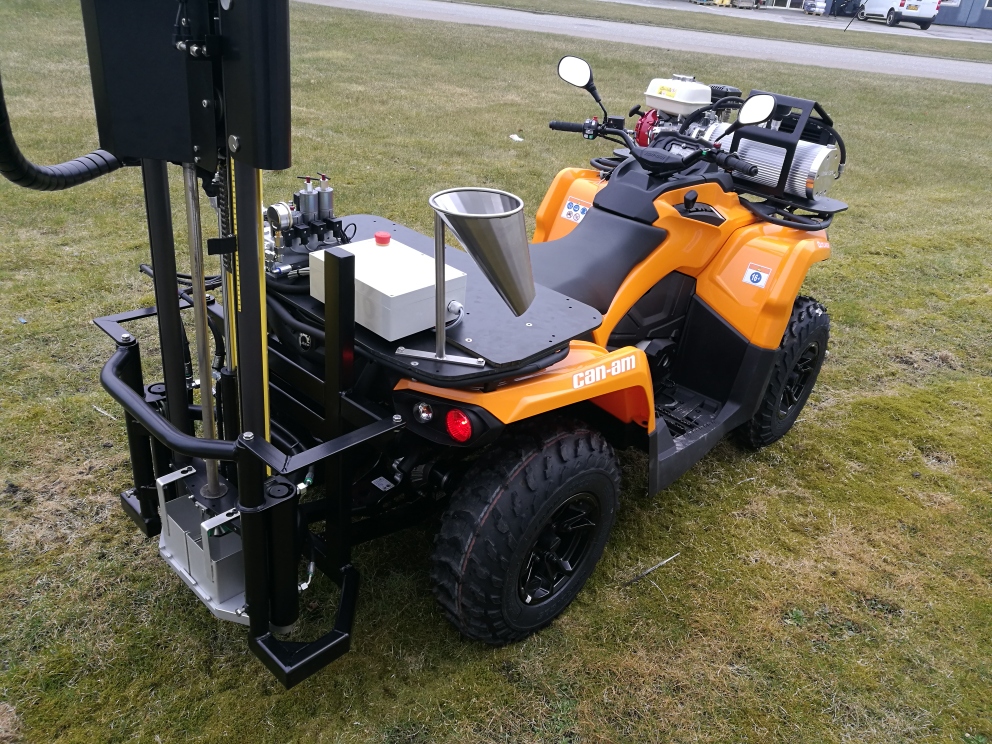

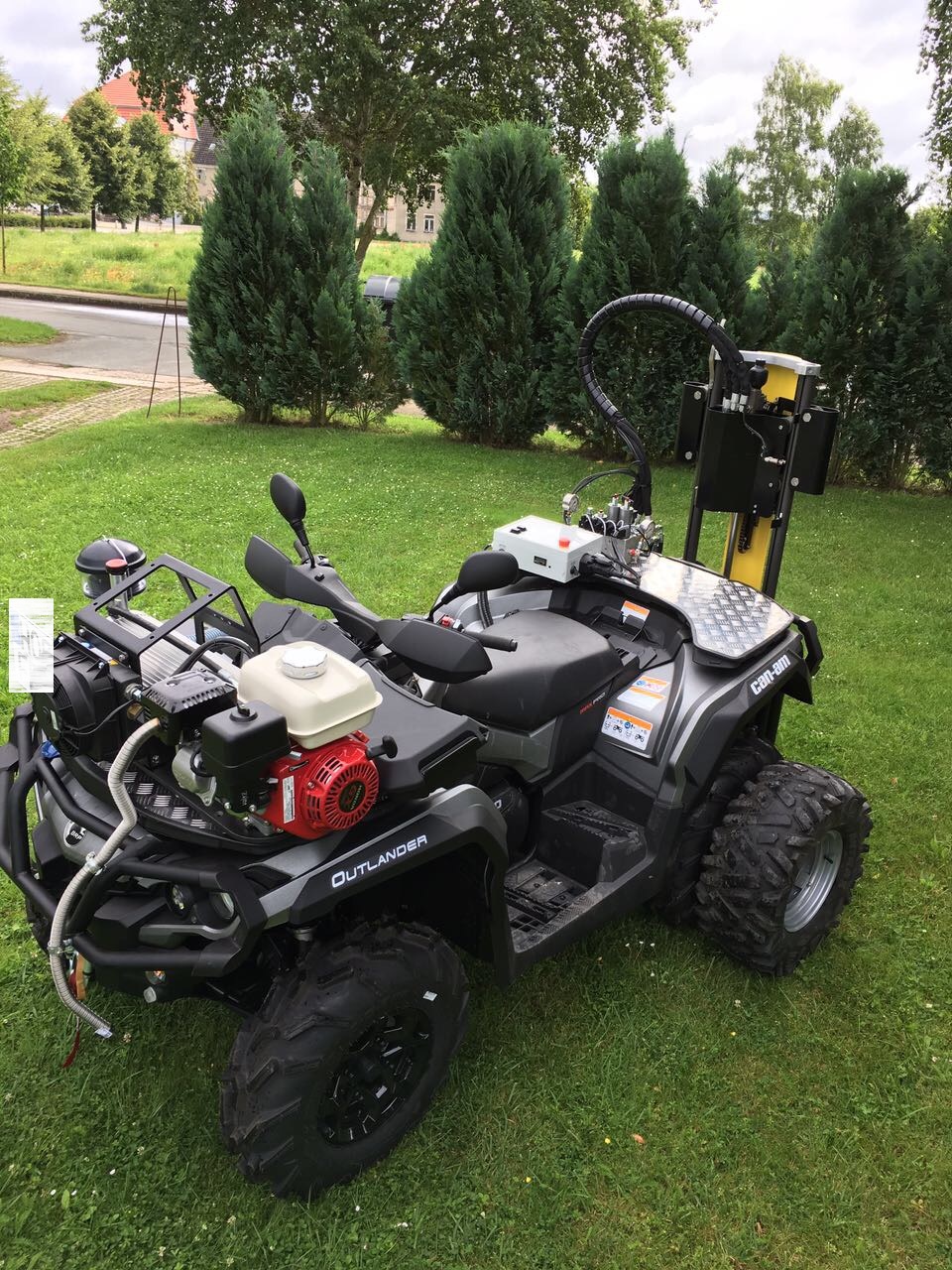

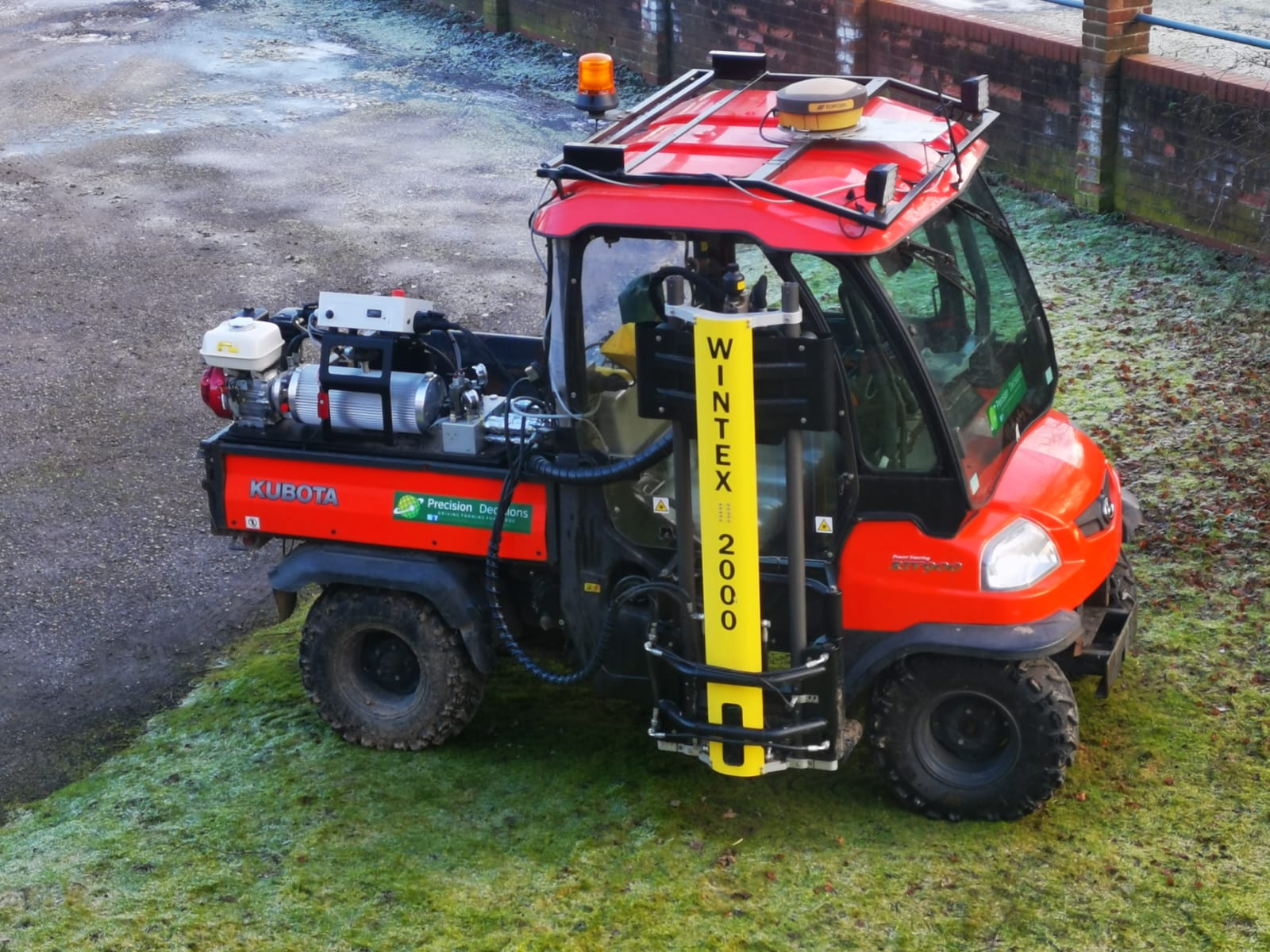

The WINTEX 2000 can be mounted on virtually every carrier vehicle, e. g. ATVs, pick-ups, caterpillar vehicles, tractors and trailers.


Specifications

Samples/hour: 15
Sticks/hour: 225
Sticks/sample: 14-16
Volumen/sample: 26 mm probe w. 16 mm slit: 2,3 g/cm,
26 mm probe w. 14 mm slit: 2,0 g/cm
at a density 1:1
Diameter probe: 26 mm
Hydraulic system: Honda GX200, 5,5 hp
Hydraulic consumption: 16 l/min, 100 bar
Hydraulic tank: 7 litres
Electrical power: 12 V DC
Capacity battery: 14 Ah, 250 W
Net weight: 91,5 kg
