Product information

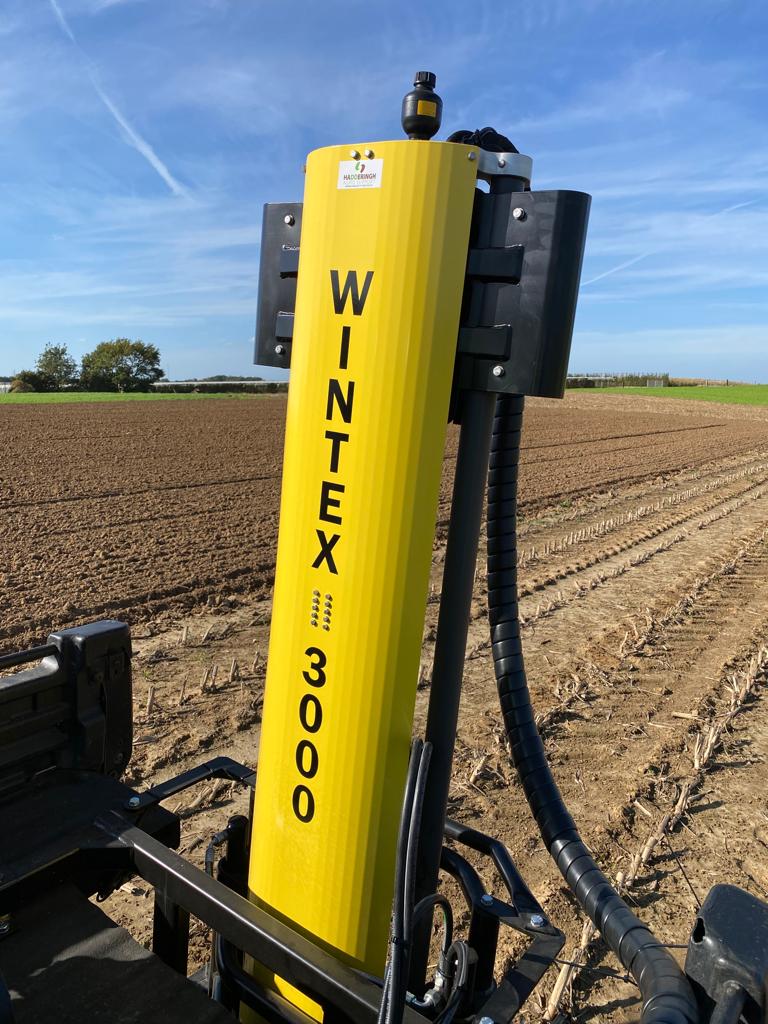

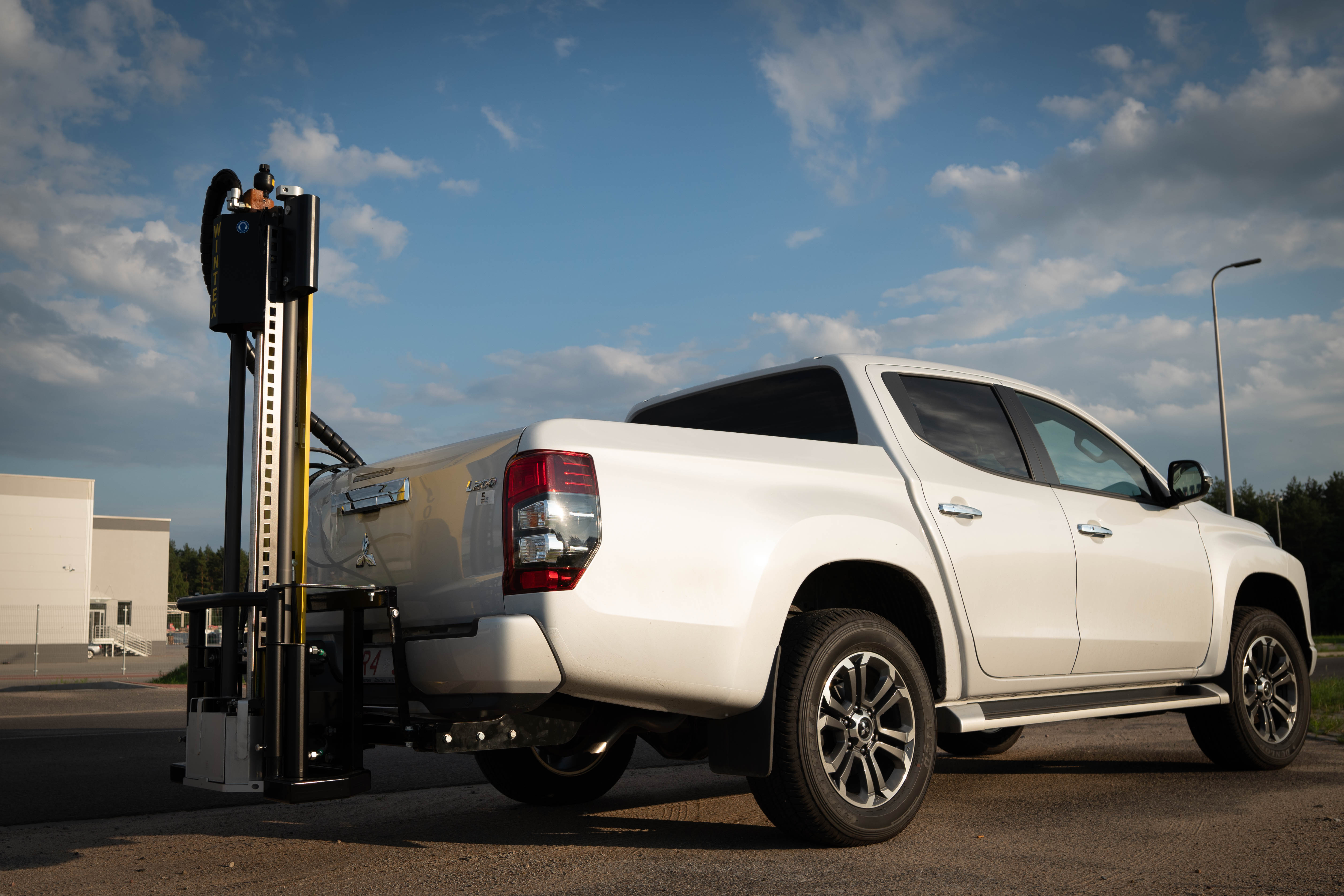

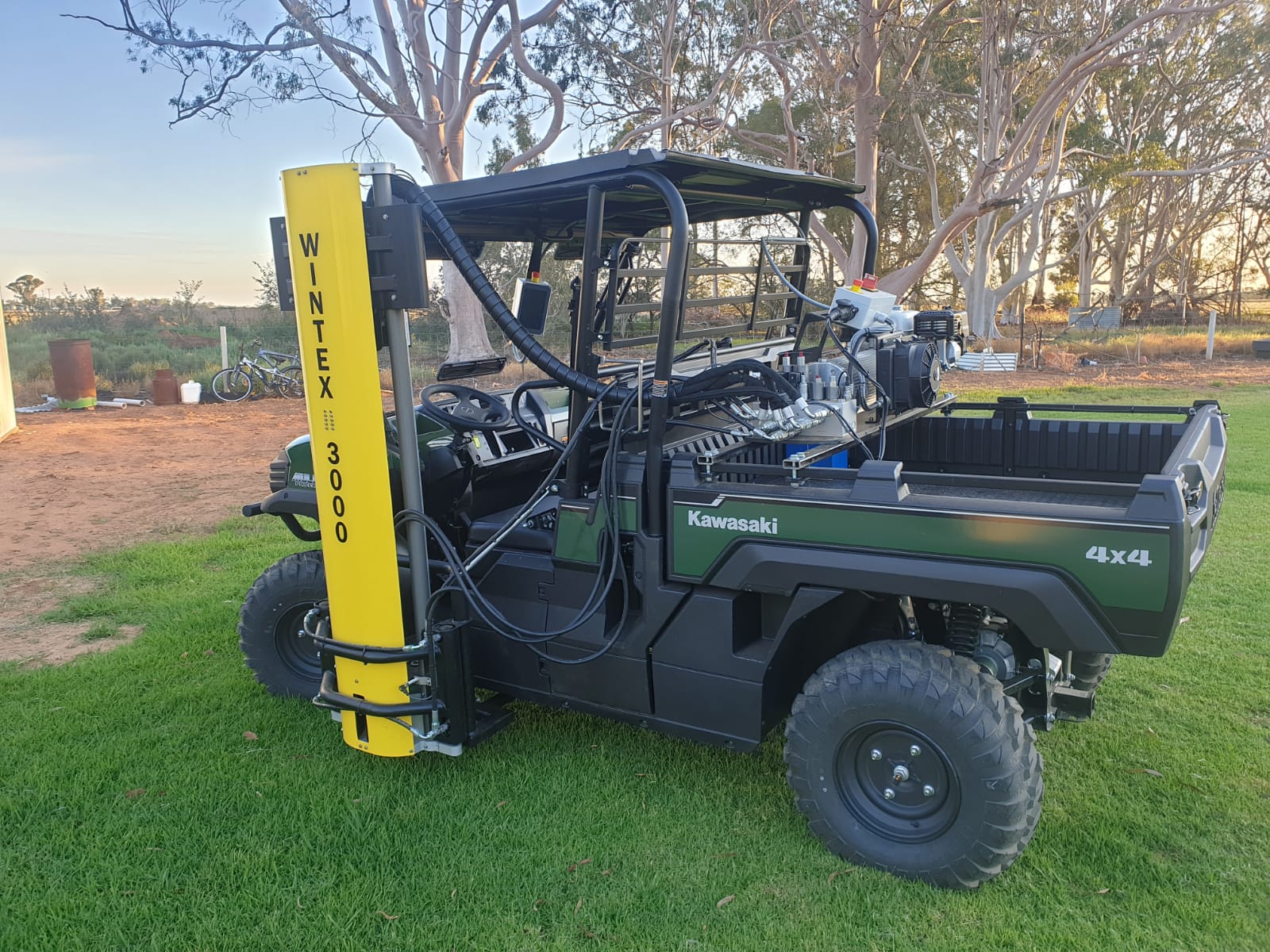

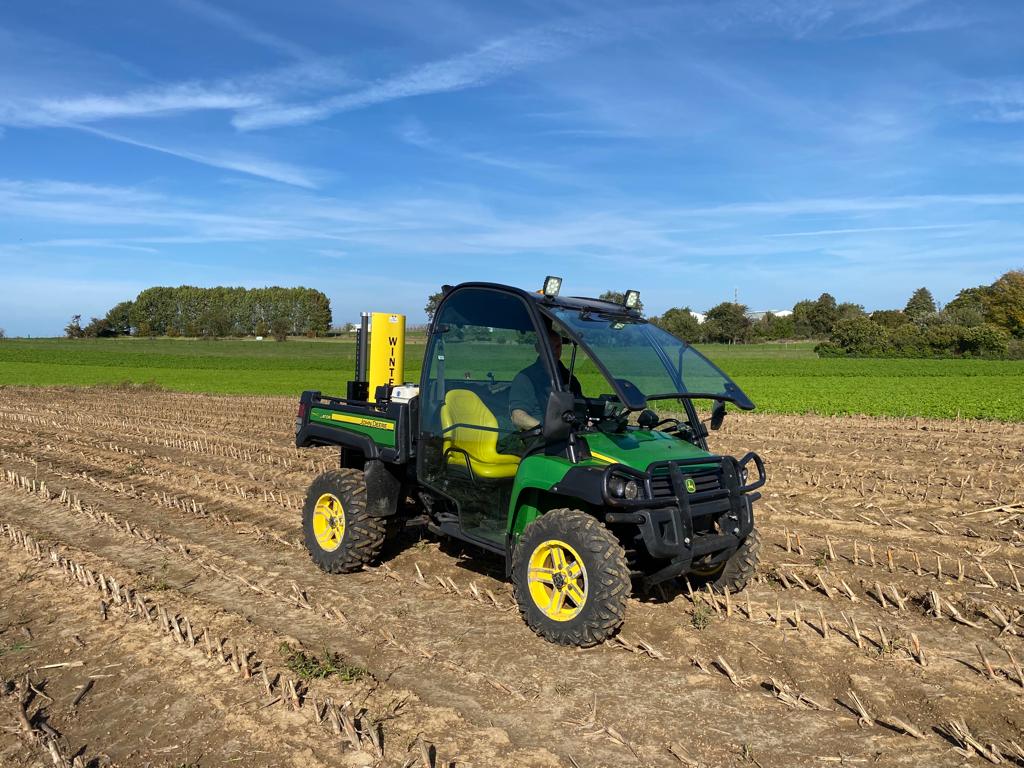

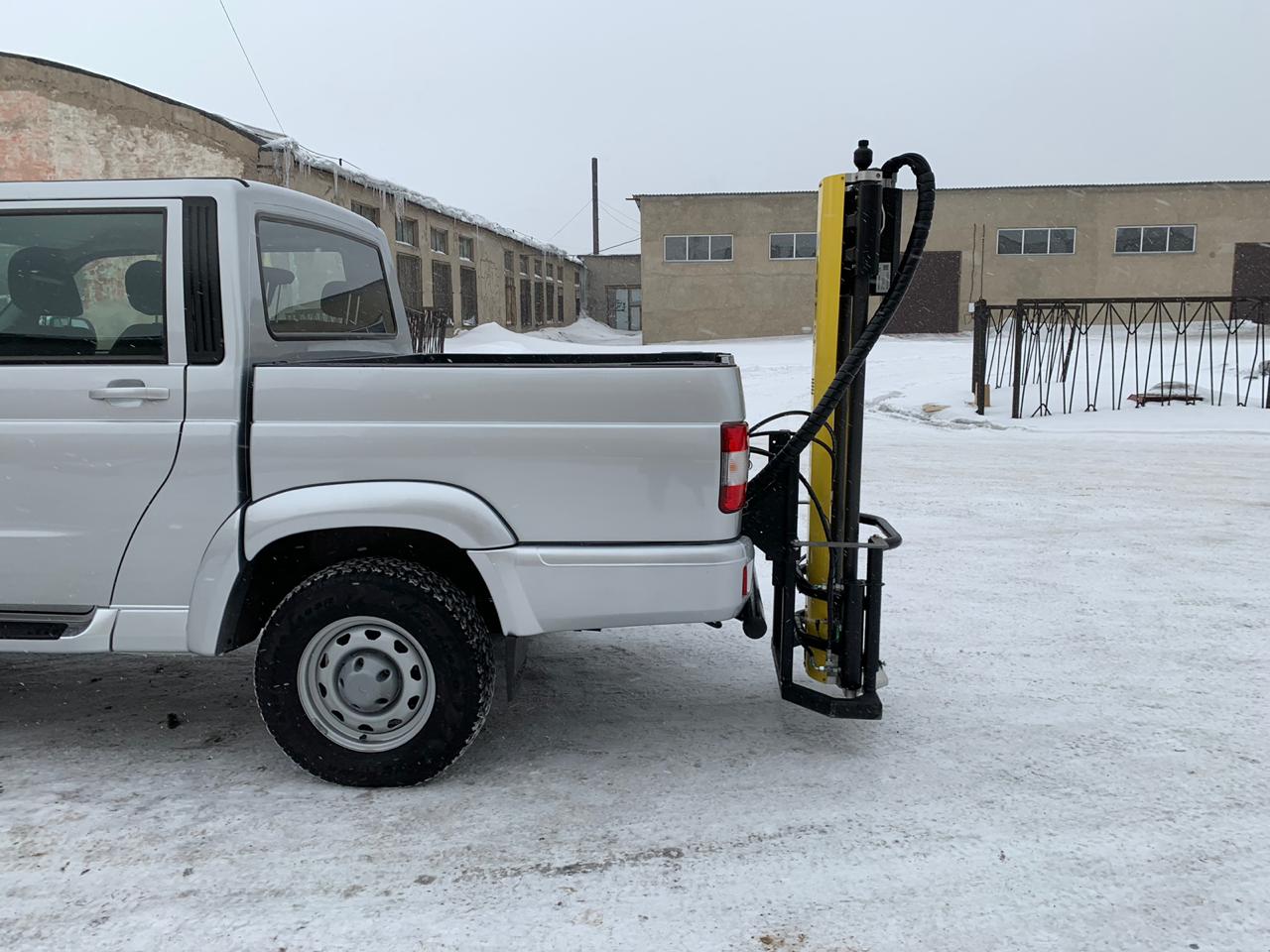

The WINTEX 3000 is an efficient and strong fully automatic soil sampler. It is user-friendly, easy to use and requires only minimum maintenance. All functions are comfortably carried out from the driver’s seat.

The WINTEX 3000 takes soil samples from 0 -90 cm. It is possible to take soil samples from one, two or three different layers at the same time. The depth and the point where the sample will be divided can be adjusted according to the user’s needs.

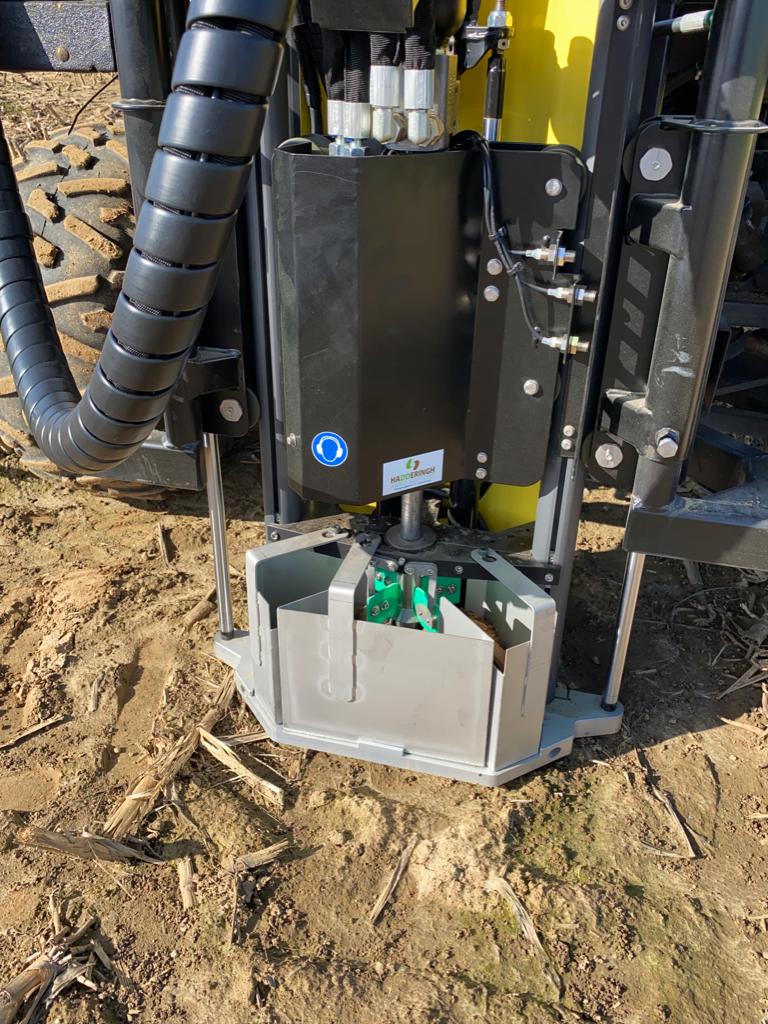

The custom-made probe rotates when it has reached the desired depth and picks up soil. On its way up homogeneous samples are delivered with close accuracy into the soil boxes. The soil can then be filled into bags or boxes by the means of a funnel, ready to be sent to the laboratory.

If the WINTEX 3000 meets obstacles or is interrupted during soil sampling and therefore only takes a half sample, the sample will be discarded through a funnel and will not be filled into the soil boxes.

The custom-made oil tank is made of aluminum. It has a ribbed surface which means that its area is three times larger than a plain surface. Because of the aluminum and the ribbed surface the cooling capacity is 12 times higher than the cooling capacity of a traditional oil tank. This means that the tank ensures optimal cooling of the hydraulic oil.


Samples/hour: 15
Sticks/hour: 1 stick in 22-28 sec.
Sticks/sample: 14-16
Volumen/sample: 26 mm probe w. 16 mm slit: 2,3 g/cm,
26 mm probe w. 14 mm slit: 2,0 g/cm
at a density 1:1
Diameter probe: 26 mm
Hydraulic system: Honda GX200, 5,5 hp
Hydraulic consumption: 16 l/min, 100 bar
Hydraulic tank: 7 l
Electrical power: 12 volt DC
Capacity battery: 14 Ah, 250 W
Net weight: 95 kg

Scroll to see more

Your down-to-earth partner

The owner of Wintex Agro is Torben Vinther who is educated and examined in agriculture and the cultivation of plants. With his outstanding know-how and great experience within precision farming and farming in general, he has specialized in developing and manufacturing automatic soil samplers.
